Interface defining all supported touch action events. More...

#include <ITouchActionHandler.h>

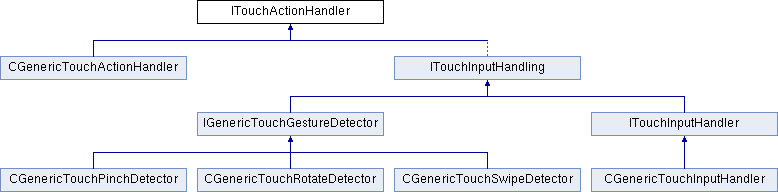

Inheritance diagram for ITouchActionHandler:

Public Member Functions
virtual	~ITouchActionHandler ()=default

virtual void	OnTouchAbort ()
	A touch action has been aborted. More...

virtual bool	OnSingleTouchStart (float x, float y)
	A single touch has started. More...

virtual bool	OnSingleTouchHold (float x, float y)
	A single touch has been held down for a certain amount of time. More...

virtual bool	OnSingleTouchMove (float x, float y, float offsetX, float offsetY, float velocityX, float velocityY)
	A single touch has moved. More...

virtual bool	OnSingleTouchEnd (float x, float y)
	A single touch has been lifted. More...

virtual bool	OnMultiTouchDown (float x, float y, int32_t pointer)
	An additional touch has been performed. More...

virtual bool	OnMultiTouchHold (float x, float y, int32_t pointers=2)
	Multiple simultaneous touches have been held down for a certain amount of time. More...

virtual bool	OnMultiTouchMove (float x, float y, float offsetX, float offsetY, float velocityX, float velocityY, int32_t pointer)
	A touch has moved. More...

virtual bool	OnMultiTouchUp (float x, float y, int32_t pointer)
	A touch has been lifted (but there are still active touches) More...

virtual bool	OnTouchGestureStart (float x, float y)
	A pan gesture with a single touch has been started. More...

virtual bool	OnTouchGesturePan (float x, float y, float offsetX, float offsetY, float velocityX, float velocityY)
	A pan gesture with a single touch is in progress. More...

virtual bool	OnTouchGestureEnd (float x, float y, float offsetX, float offsetY, float velocityX, float velocityY)
	A pan gesture with a single touch has ended. More...

virtual void	OnTap (float x, float y, int32_t pointers=1)
	A tap with a one or more touches has been performed. More...

virtual void	OnLongPress (float x, float y, int32_t pointers=1)
	One or more touches have been held down for a certain amount of time. More...

virtual void	OnSwipe (TouchMoveDirection direction, float xDown, float yDown, float xUp, float yUp, float velocityX, float velocityY, int32_t pointers=1)
	One or more touches has been moved quickly in a single direction in a short time. More...

virtual void	OnZoomPinch (float centerX, float centerY, float zoomFactor)
	Two simultaneous touches have been held down and moved to perform a zooming/pinching gesture. More...

virtual void	OnRotate (float centerX, float centerY, float angle)
	Two simultaneous touches have been held down and moved to perform a rotating gesture. More...

Detailed Description

Interface defining all supported touch action events.

Constructor & Destructor Documentation

◆ ~ITouchActionHandler()

virtual ITouchActionHandler::~ITouchActionHandler ( )

virtualdefault

Member Function Documentation

◆ OnLongPress()

virtual void ITouchActionHandler::OnLongPress	(	float	x,
		float	y,
		int32_t	pointers = `1`
	)

inlinevirtual

One or more touches have been held down for a certain amount of time.

Parameters

x	The x coordinate (with sub-pixel) of the touch
y	The y coordinate (with sub-pixel) of the touch
pointers	The number of pointers involved (default 1)

Returns: True if the event was handled otherwise false

See also: OnSingleTouchHold

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnMultiTouchDown()

virtual bool ITouchActionHandler::OnMultiTouchDown	(	float	x,
		float	y,
		int32_t	pointer
	)

inlinevirtual

An additional touch has been performed.

Parameters

x	The x coordinate (with sub-pixel) of the touch
y	The y coordinate (with sub-pixel) of the touch
pointer	The pointer that has performed the touch

Returns: True if the event was handled otherwise false

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnMultiTouchHold()

virtual bool ITouchActionHandler::OnMultiTouchHold	(	float	x,
		float	y,
		int32_t	pointers = `2`
	)

inlinevirtual

Multiple simultaneous touches have been held down for a certain amount of time.

Parameters

x	The x coordinate (with sub-pixel) of the touch
y	The y coordinate (with sub-pixel) of the touch
pointers	The number of pointers involved (default 2)

Returns: True if the event was handled otherwise false

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnMultiTouchMove()

virtual bool ITouchActionHandler::OnMultiTouchMove	(	float	x,
		float	y,
		float	offsetX,
		float	offsetY,
		float	velocityX,
		float	velocityY,
		int32_t	pointer
	)

inlinevirtual

A touch has moved.

Parameters

x	The x coordinate (with sub-pixel) of the current touch
y	The y coordinate (with sub-pixel) of the current touch
offsetX	The covered distance on the x axis (with sub-pixel)
offsetX	The covered distance on the y axis (with sub-pixel)
velocityX	The velocity of the gesture in x direction (pixels/second)
velocityX	The velocity of the gesture in y direction (pixels/second)
pointer	The pointer that has performed the touch

Returns: True if the event was handled otherwise false

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnMultiTouchUp()

virtual bool ITouchActionHandler::OnMultiTouchUp	(	float	x,
		float	y,
		int32_t	pointer
	)

inlinevirtual

A touch has been lifted (but there are still active touches)

Parameters

x	The x coordinate (with sub-pixel) of the touch
y	The y coordinate (with sub-pixel) of the touch
pointer	The pointer that has performed the touch

Returns: True if the event was handled otherwise false

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnRotate()

virtual void ITouchActionHandler::OnRotate	(	float	centerX,
		float	centerY,
		float	angle
	)

inlinevirtual

Two simultaneous touches have been held down and moved to perform a rotating gesture.

Parameters

centerX	The x coordinate (with sub-pixel) of the center of the two touches
centerY	The y coordinate (with sub-pixel) of the center of the two touches
angle	The clockwise angle in degrees of the rotation

Returns: True if the event was handled otherwise false

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnSingleTouchEnd()

virtual bool ITouchActionHandler::OnSingleTouchEnd	(	float	x,
		float	y
	)

inlinevirtual

A single touch has been lifted.

Parameters

x	The x coordinate (with sub-pixel) of the touch
y	The y coordinate (with sub-pixel) of the touch

Returns: True if the event was handled otherwise false

See also: OnSingleTap

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnSingleTouchHold()

virtual bool ITouchActionHandler::OnSingleTouchHold	(	float	x,
		float	y
	)

inlinevirtual

A single touch has been held down for a certain amount of time.

Parameters

x	The x coordinate (with sub-pixel) of the touch
y	The y coordinate (with sub-pixel) of the touch

Returns: True if the event was handled otherwise false

See also: OnSingleLongPress

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnSingleTouchMove()

virtual bool ITouchActionHandler::OnSingleTouchMove	(	float	x,
		float	y,
		float	offsetX,
		float	offsetY,
		float	velocityX,
		float	velocityY
	)

inlinevirtual

A single touch has moved.

Parameters

x	The x coordinate (with sub-pixel) of the current touch
y	The y coordinate (with sub-pixel) of the current touch
offsetX	The covered distance on the x axis (with sub-pixel)
offsetX	The covered distance on the y axis (with sub-pixel)
velocityX	The velocity of the gesture in x direction (pixels/second)
velocityX	The velocity of the gesture in y direction (pixels/second)

Returns: True if the event was handled otherwise false

See also: OnTouchGesturePan

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnSingleTouchStart()

virtual bool ITouchActionHandler::OnSingleTouchStart	(	float	x,
		float	y
	)

inlinevirtual

A single touch has started.

Parameters

x	The x coordinate (with sub-pixel) of the touch
y	The y coordinate (with sub-pixel) of the touch

Returns: True if the event was handled otherwise false

See also: OnSingleTap

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnSwipe()

virtual void ITouchActionHandler::OnSwipe	(	TouchMoveDirection	direction,
		float	xDown,
		float	yDown,
		float	xUp,
		float	yUp,
		float	velocityX,
		float	velocityY,
		int32_t	pointers = `1`
	)

inlinevirtual

One or more touches has been moved quickly in a single direction in a short time.

Parameters

direction	The direction (left, right, up, down) of the swipe gesture
xDown	The x coordinate (with sub-pixel) of the first touch
yDown	The y coordinate (with sub-pixel) of the first touch
xUp	The x coordinate (with sub-pixel) of the last touch
yUp	The y coordinate (with sub-pixel) of the last touch
velocityX	The velocity of the gesture in x direction (pixels/second)
velocityX	The velocity of the gesture in y direction (pixels/second)
pointers	The number of pointers involved (default 1)

Returns: True if the event was handled otherwise false

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnTap()

virtual void ITouchActionHandler::OnTap	(	float	x,
		float	y,
		int32_t	pointers = `1`
	)

inlinevirtual

A tap with a one or more touches has been performed.

Parameters

x	The x coordinate (with sub-pixel) of the touch
y	The y coordinate (with sub-pixel) of the touch
pointers	The number of pointers involved (default 1)

Returns: True if the event was handled otherwise false

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnTouchAbort()

virtual void ITouchActionHandler::OnTouchAbort ( )

inlinevirtual

A touch action has been aborted.

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnTouchGestureEnd()

virtual bool ITouchActionHandler::OnTouchGestureEnd	(	float	x,
		float	y,
		float	offsetX,
		float	offsetY,
		float	velocityX,
		float	velocityY
	)

inlinevirtual

A pan gesture with a single touch has ended.

Parameters

x	The x coordinate (with sub-pixel) of the current touch
y	The y coordinate (with sub-pixel) of the current touch
offsetX	The covered distance on the x axis (with sub-pixel)
offsetX	The covered distance on the y axis (with sub-pixel)
velocityX	The velocity of the gesture in x direction (pixels/second)
velocityX	The velocity of the gesture in y direction (pixels/second)

Returns: True if the event was handled otherwise false

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnTouchGesturePan()

virtual bool ITouchActionHandler::OnTouchGesturePan	(	float	x,
		float	y,
		float	offsetX,
		float	offsetY,
		float	velocityX,
		float	velocityY
	)

inlinevirtual

A pan gesture with a single touch is in progress.

Parameters

x	The x coordinate (with sub-pixel) of the current touch
y	The y coordinate (with sub-pixel) of the current touch
offsetX	The covered distance on the x axis (with sub-pixel)
offsetX	The covered distance on the y axis (with sub-pixel)
velocityX	The velocity of the gesture in x direction (pixels/second)
velocityX	The velocity of the gesture in y direction (pixels/second)

Returns: True if the event was handled otherwise false

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnTouchGestureStart()

virtual bool ITouchActionHandler::OnTouchGestureStart	(	float	x,
		float	y
	)

inlinevirtual

A pan gesture with a single touch has been started.

Parameters

x	The x coordinate (with sub-pixel) of the initial touch
y	The y coordinate (with sub-pixel) of the initial touch

Returns: True if the event was handled otherwise false

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

◆ OnZoomPinch()

virtual void ITouchActionHandler::OnZoomPinch	(	float	centerX,
		float	centerY,
		float	zoomFactor
	)

inlinevirtual

Two simultaneous touches have been held down and moved to perform a zooming/pinching gesture.

Parameters

centerX	The x coordinate (with sub-pixel) of the center of the two touches
centerY	The y coordinate (with sub-pixel) of the center of the two touches
zoomFactor	The zoom (> 1.0) or pinch (< 1.0) factor of the two touches

Returns: True if the event was handled otherwise false

Reimplemented in CGenericTouchActionHandler, and ITouchInputHandling.

The documentation for this class was generated from the following file:

ITouchActionHandler.h

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ ~ITouchActionHandler()

Member Function Documentation

◆ OnLongPress()

◆ OnMultiTouchDown()

◆ OnMultiTouchHold()

◆ OnMultiTouchMove()

◆ OnMultiTouchUp()

◆ OnRotate()

◆ OnSingleTouchEnd()

◆ OnSingleTouchHold()

◆ OnSingleTouchMove()

◆ OnSingleTouchStart()

◆ OnSwipe()

◆ OnTap()

◆ OnTouchAbort()

◆ OnTouchGestureEnd()

◆ OnTouchGesturePan()

◆ OnTouchGestureStart()

◆ OnZoomPinch()
